Home > Products > Thermometer > Marine thermometer insert tube measuring instrument

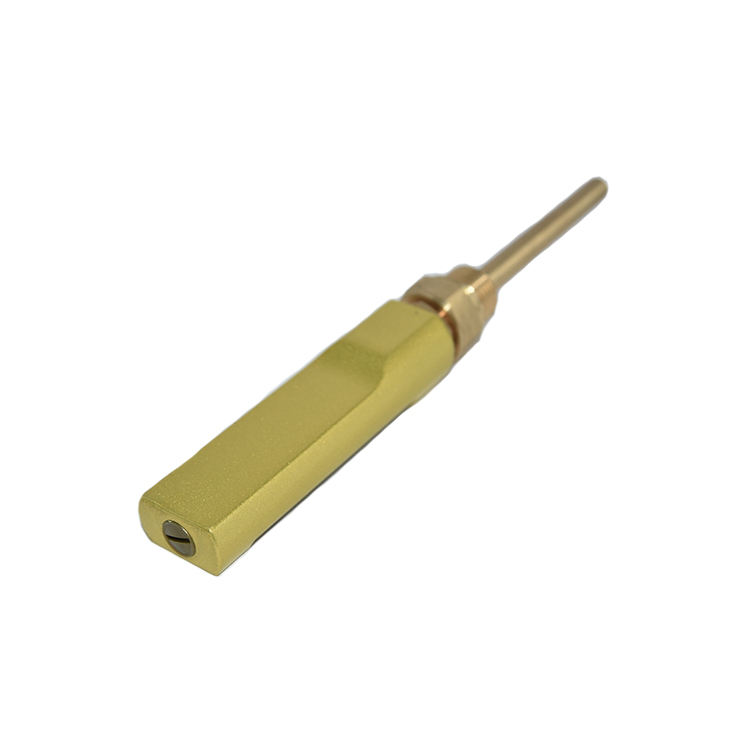

Marine thermometer insert tube measuring instrument

  • Marine thermometer insert tube measuring instrument
  • Marine thermometer insert tube measuring instrument
  • Marine thermometer insert tube measuring instrument
  • Marine thermometer insert tube measuring instrument

Marine thermometer insert tube measuring instrument

    Packaging: carton box
    Productivity: 500 Piece/Pieces per Month
    Transportation: Ocean,Express,Air,Land
    Place of Origin: china
    Supply Ability: 500 Piece/Pieces per Month
    Port: Shanghai

Product Description

Glass Tube Industrial Thermometer, commonly known as a metal jacket thermometer, is a glass internal standard thermometer fitted with a copper jacket. The Pressure Type Thermometer can be directly mounted on a boiler or mechanical equipment, which plays a role in safety and pressure protection and is widely used. According to their different shapes, they can be divided into three types: straight (WNG/WNY-01), 90° (WNG/WNY-02) and 135° (WNG/WNY-03). According to their different uses, they can be divided into two types: mercury and organic liquids. The Metalic Protector Thermometer can measure the temperature within -30+500℃, the organic liquid is red and blue, and can measure the temperature within -100+200℃. According to the needs of users, thermometers of various lengths can be produced

Temperature Measuring Instrument Color

Product Description
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Specification
Name
Marine thermometer
Instructions for marine thermometer 1、 Use Marine thermometer is applicable to be installed on pipelines and vessels of marine equipment for on-site temperature measurement. Marine metal sheathed thermometers are also widely used in chemical industry, pharmacy, brewing, printing and dyeing and machinery manufacturing. At the same time, they are suitable for temperature measurement in laboratories and laboratories of various scientific research, education and medical institutions. 2、 Technical parameters 1. Measurement range: - 30 ~ 50 ℃, 0 ~ 50 ℃, 0 ~ 100 ℃, 0 ~ 120 ℃, 0 ~ 150 ℃, 0 ~ 200 ℃, 0 ~ 250 ℃, 0 ~ 300 ℃, 0 ~ 350 ℃, 0 ~ 400 ℃, 0 ~ 450 ℃, 0 ~ 500 ℃ and 0 ~ 600 ℃; 2. Accuracy grade: ± 1 ~ ± 2 division value; 3. Enclosure protection grade: IP44; 4. The thermometer shall work normally within - 25 ~ 55 ℃; 5. Upper body length H (mm): 110, 150, 200. 6. Thread specification: G3 / 8 ", G1 / 2", G3 / 4 ", m20x1.5, m27x2, etc; 3、 Product specification The metal sleeve thermometer is easy to use and reliable in accuracy. Metal sleeves are divided into straight line (WLG) according to shape and material-__ 1(/S)-C),90°(WLG-__ 2(/S)-C),135°(WLG-__ 3(/S)-C)。 4、 Installation and use 1. The thermometer must measure the temperature according to the specified immersion depth; 2. The thermometer shall be installed in a place convenient for reading, but it shall not be installed on the side or obliquely; 3. The external protective pipe can be directly welded or threaded on the pipeline and container. 5、 Ordering instructions When ordering, the model, measurement range L and thread size shall be indicated. If there are special requirements, they shall be explained.
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color
Temperature Measuring Instrument Color

Taizhou Jiabo Instrument Technology Co., Ltd.

  • 1
  • 2
  • 3


Taizhou Jiabo Instrument Technology Co., Ltd. is a professional manufacturer specializing in the production of automatic instruments, various sensors and measurement and control equipment. It has been widely used in shipbuilding, petroleum, chemical industry, light industry, nuclear industry, food, medicine and other industries to detect and control the liquid level of media in various towers, tanks, tanks and containers.
The company is located in the high tech entrepreneurship center of Jiangyan District, Taizhou city. It is a well-known enterprise with its own brand and core technology. The company continues to introduce European technology, process and production equipment, and continues to receive the full support of European strategic partners. Our products have won the favor of the majority of users with their excellent quality and perfect service, and sell well all over the world. As a mature intelligent solution provider in the global field, every upgrade of Jiabo leads the trend of intelligent and digital instruments in China. Our professional instrument technology and products can help customers improve the core competitiveness of their products and take the lead in the market.
Jiabo has been committed to the development of intelligent instruments. Through continuous technological innovation and product improvement, Jiabo company can provide safe, reliable and economical perfect intelligent overall solutions for various pressure, temperature, gas measurement and process control systems, making you safer, simpler and more intelligent in your work and life.
Our company adheres to the business philosophy of customer-oriented and service-oriented. With excellent IT service quality, professional technical service strength and skilled customer service team, our company ensures customers to gallop on the high-speed road in the information age. In the spirit of stability, development, loyalty, efficiency, unity and innovation, we respect talents and pay attention to technology, So that customers can enjoy the new achievements of information technology development and continuously obtain benefits at the same time.
