School station stainless steel RFID QR code biomatric face recognition automatic Flap barrier supplier
Product Description
High quality automatic qr code Flap Barrier Turnstile Gate mechanism
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
Production Series | ||||||
Model | RS 188 | RS 488 | RS 888 | |||
Material of Housing | 304Stainless Steel | |||||
Material of Flap Door | Organic Glass , Resin, or PVC | |||||
Dimension of Housing (LxWxH mm) | Dimension of Housing (LxWxH mm) | 1450*315*1020 | 1450*315*1020 | |||
Net Weight | 70kg | 140kg | 85KG | |||
Max Width of Passage | 600 mm | 900 mm | 900 mm | |||
Product Parameter | ||||||
Meterial of housing | 304 Stainless Steel | Meterial of flap door | Organic Glass & Resin | |||
Width of passage | 600 mm & 900 mm | Transit speed | 30-40 Persons/min | |||
Power supply | 220V±10% 50Hz, 110V±10% 60Hz | Working voltage of motor | DC24V | |||
Time for Opening or Closing | 1 sec | Starting time after power on | 3 sec, Adjustable | |||
Working Environment | Indoor / Outdoor (Shelter) | Working Temperature | -10°C~50°C | |||
Relative Humidity | ≤95%, no condensation | Thicness | 1.5-2.0mm | |||
Main Features
1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available

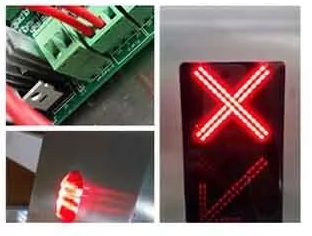

12) Traffic light indicating passenger access
Advanced Features

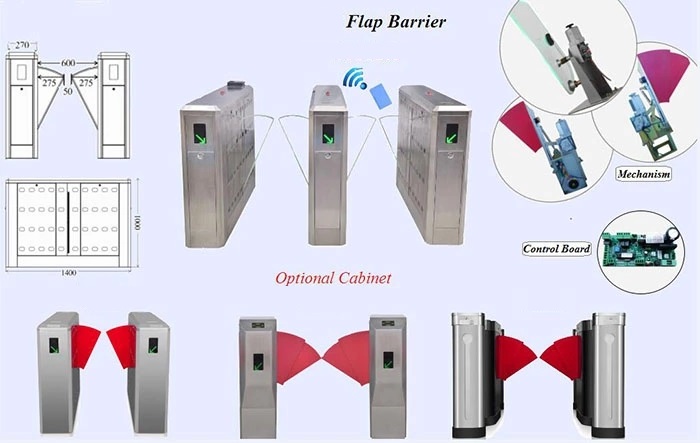

Feature:Special Designed Mechanism
A compact electric and mechaical design with unlque drive which ensure product durability and silent opation.and its self-lock mechanism can also well protect the Access Control security.
Feature:Automatic Detection
Automatic detection for malfunctions,which will be convenient for customer to main and operate.
Feature:Available for All Access Control System

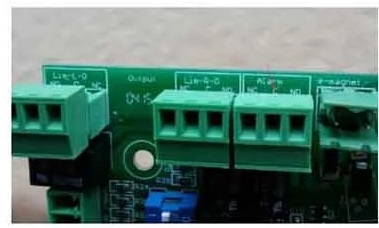

Input interface which are available for dry contact and switch signal connections.So customers can integrate the flap barrier with different syste,like card reader,ticket system,token system etc.
Function Emergency Function
it can be integrated with fire control device which allow the release on emergency for security consideration.
Function Emergency Function
it can be integrated with fire control device which allow the release on emergency for security consideration.
Function:Infrared photocells for safety access
Infrared photocell to detect ahnormal access,and flap syste will stay locked if not receiving authorized signal.
Product packaging
Packaging | ||
Size | 150*36*118CM | |
Weight | 96 KG | |
Packaging Details | The normal package is wooden box(Size: 150*36*118CM). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Sevices | ||||||||
Pyment Term | Leading Time | Minimum Order | Supply Ability | Package | ||||
T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box | ||||
FAQ
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life ,No Attrition ,Low-Noise ,Hight Intelligence .9 Pairs of infrared
sensors , including 6 pairs for logic judgment function , and 3 pairs for protection .anti-tag after, anti-hit against .
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the flap gate Working environment ?
-------- They can be used indoor and outdoor(added the rainshed).
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
-------- DC Brushless Motor , no maintenance all the of life ,No Attrition ,Low-Noise ,Hight Intelligence .9 Pairs of infrared
sensors , including 6 pairs for logic judgment function , and 3 pairs for protection .anti-tag after, anti-hit against .
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the flap gate Working environment ?
-------- They can be used indoor and outdoor(added the rainshed).
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
